Home » Products » Heavy Duty Pillar Drilling Machine » 25 mm Cap. 378 mm Center Pillar Drilling Machine

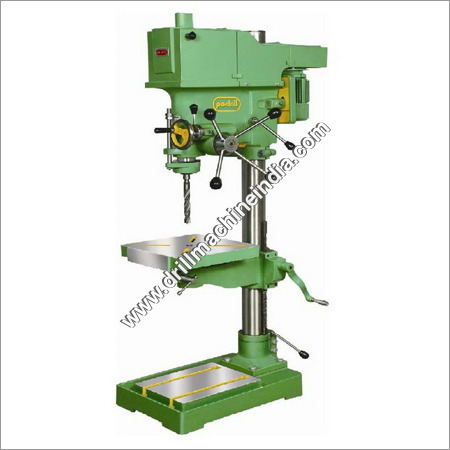

25 mm Cap. 378 mm Center Pillar Drilling Machine

25 mm Cap. 378 mm Center Pillar Drilling Machine
25 mm Cap. 378 mm Center Pillar Drilling Machine
Product Code : 25/378PPD
Brand Name : Pa-drill
Trade Information
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Nhava Seva, Mumbai (For Export only)
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 10
  • Delivery Time
  • Week
  • Packaging Details
  • Plastic Wrapping for Domestic Orders. Seaworthy Wooden Packing for Export orders with Fumigation & ISPM 15 Stamping.
  • Main Export Market(s)
  • Asia, Australia, Middle East, Africa
  • Certifications
  • Our Machines are manufactured according to ISO standards and tested with same quality standards.
Product Description

"Pa-drill" Brand Machine Model No. 25/378PPD : 25 mm Cap. 378 mm Center Heavy Duty Pillar Drilling Machine with Square table, Helical Gear Drive and Rack-Pinion system

Technical Specifications & General Dimensions

Capacity
Drilling Capacity in Steel 25
Drilling Capacity in C.I. 30
Tapping Capacity in Steel 20
Spindle
Spindle Travel 200
Spindle Taper MT-3
No. of Spindle Speed 8
Range of Spindle Speed 115-2820
Working Range
Column Diameter 87
Max. Distance between Spindle Center to column Face 378
Max. Distance between Spindle Nose to Working Table 600
Max. Distance between Spindle Nose to Base Plate 1000
General
Size of Square Table 395 x 395
Size of Base Plate 645 x 380
Electric Motor 3 Phase, 1 H.P. 1440 RPM
'V'-Belt Size A-60
Net Weight of Machine ( Approx. )
300 Kg.
Overall Dimensions of Machine H x W x L 1770 x 725 x 470
Shipping Dimension 1950 x 750 x 520

Standard Accessories :
Drill Drift, Motor Pulley
Extra Accessories:
Electric Motor, R/F Switch, V-Belt, Drill Chuck, Arbor, Hardened Threaded Spindle.
