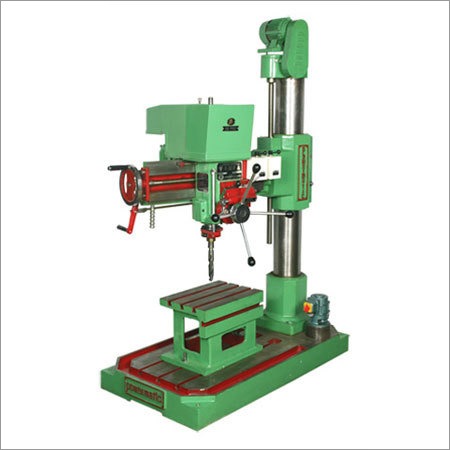

38 mm Cap Auto-Feed Radial Drilling Machine

38 mm Cap Auto-Feed Radial Drilling Machine
38 mm Cap Auto-Feed Radial Drilling Machine
Send Inquiry
Product Code : 38PRD
Brand Name : Powermatic
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

The 38 mm Cap Auto-Feed Radial Drilling Machine that we provide has a wide area of usage in the construction and mining sectors for boring to create holes in different types of materials. The offered machine is widely demanded in the market owing to its clever design, rugged construction, unmatched performance, low maintenance needs, shock proof functioning and various other such factors. Owing to its reliability and cleverly designed control panels it is sure to maintain consistency and accuracy in boring for long durations of time. We provide this 38 mm Cap Auto-Feed Radial Drilling Machine in a number of different specifications according to the needs of our customers.

Technical Specifications & General Dimensions


Model No. 38 PRD(Auto Feed) 38 PRDF(Fine Feed)
Capacity
Drilling in Steel 38 38
Drilling in C.I. 38 38
Spindle
Spindle Travel 225 225
Spindle Taper MT-4 MT-4
No.of spindle speed 8 8
Range of spindle speed 65-1980 65-1980
No. of feed 02 -
Feed value mm/rev. 0.08-0.04 Fine-Feed
Working Range
Column diameter 165 165

Max/Min distance between
spindle center of column face

855/310 855/310
Max/Min distance between
spindle nose to base plate
860/200 860/200

Size of base plate

1285 x 685 x 130 1285 x 685 x 130
Working Surface of table 465 x 340 465 x 340
General
Number/Center distance of
"T" slots for base plate
3-138 3-138
Size of "T" slots for base plate M-16 M-16
Number/Center distance of
"T" slots for working table
3-80 3-80
Size of "T" slots for workinh table M-16 M-16
Nett. weight of the machine (Approx.) 950 kg. 950 kg.
Overall dimensions of the machine 2000 x 1330 x 915 2000 x 1330 x 915
Shipping dimensions of the machine 2100 x 1430 x 1015 2100 x 1430 x 1015
Power
Drilling Head motor 3 Phase, 1.5 H.P. 1440 RPM 3 Phase, 1.5 H.P. 1440 RPM
Arm Elevating Head motor 3 Phase, 0.5 H.P. 1440 RPM 3 Phase, 0.5 H.P. 1440 RPM
Coolant Pump motor 3 Phase, 0.25 H.P. 2800 RPM 3 Phase, 0.25 H.P. 2800 RPM
V-Belt Size
Drilling Head motor B-47 B-47
Arm Elevating Head motor A-23 A-23

Standard Accessories
  • Motor Pulley: 2 Nos
  • Box table with 'T' slots
  • Drill drift
Extra Accessories
  • 1.5 HP & 0.5 HP - Electric motor
  • Reversible Switch
  • Coolant pump with Spout Assembly
  • 'V' belts
  • Drill chuck-Arbour
Trade Information
  • FOB Port
  • Nhava Seva, Mumbai (For Export only)
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 5 Per Week
  • Delivery Time
  • Week
  • Packaging Details
  • Plastic Wrapping for Domestic Supply. Seaworthy wooden packing for Export orders with Fumigation and ISPM 15 stamping.
  • Main Export Market(s)
  • Asia, Australia, Middle East, Africa
  • Certifications
  • Our Machines are manufactured according to ISO standards and Tested as per same quality standards.
