6 MM Cap. High Speed Drilling Machine
6 MM Cap. High Speed Drilling Machine
Product Code : PTH- 6
Brand Name : Powermatic
Price And Quantity
- Unit of Measure
- Piece/Pieces
- Minimum Order Quantity
Trade Information
- FOB Port
- Nhava Seva, Mumbai (For Export only)
- Payment Terms
- Telegraphic Transfer (T/T)
- Supply Ability
- 20
- Delivery Time
- Week
- Packaging Details
- Plastic Wrapping for Domestic Orders. Seaworthy Wooden Packing for International orders.
- Main Export Market(s)
- Asia, Australia, Middle East, Africa
- Certifications
- Our Machines are manufactured & Tested according to ISO Standards.
Product Description

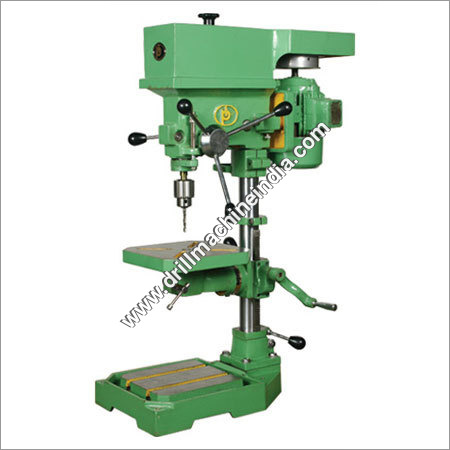

"POWERMATIC" Brand High Speed Drilling Machine Model No. PTH-6
Technical Specifications & General Dimensions
| Technical Data | |
| Drilling Capacity in Steel | 6 |
| Drilling Capacity in C.I. & alloys metals | 7 |
| Distance-spindle center to column face | 155 |
| Maximum distance between drill chuck face to table face | 225 |
| Minimum distance between drill chuck face to base plate | 430 |
| Diameter of column | 46.80 |
| Spindle Travel | 57 |
| Size of Working table | 220 x 220 |
| Size of Base Plate | 265 x 385 |
| Number of spindle speeds | 2 |
| Range of spindle speeds | 5000-10000 |
| Flat Belt Size | 900mm x 20mm |
| Electric Motor | 3 Phase, 0.5 H.P. 2800 RPM |
| Net Weight of the machine ( Approx. ) | 52 kg. |
| Overall dimension of machine | 550 x 360 x 930 |
| Overall dimension of Wooden Box | 650 x 460 x 1030 |
Standard Accessories
Motor Pulley
Extra Accessories
- Flat Belt
- Grip chuck No. 95 Plain bearing cap 1-10 mm
- Electric motor
- Reversible Switch
