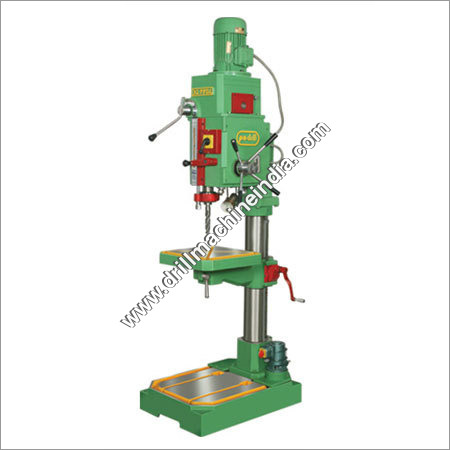

Our expertise enables us to manufacture, export and supply a broad range of All Geared Pillar Drilling Machine that is made available in various specific options. Offered machine is exclusively used for boring and drilling purposes in automobile, electrical and electronics industries. Manufactured by making use of modern technology and quality assured component at our sound manufacturing unit, this machine is widely cherished by our clients due to its robust design. Furthermore, this All Geared Pillar Drilling Machine can be availed from us in within given time frame as per the clients' choice at industry leading prices.
Features:
Proper installation of machine parts
Effective drilling
Accurate results
High operational fluency
Technical Specification & General Dimensions
Capacity | |
Drilling Capacity in Steel | 32 |
Drilling Capacity in C.I. | 35 |
Tapping Capacity in Steel | 28 |
Spindle | |
Spindle Travel | 175 |
Spindle Taper | MT-3 |
No. of Spindle Speed | 8 |
Range of Spindle Speed | 132-1500 |
Number of Feed / Value | 3 / 0.1, 0.2, 0.3 mm/rew |
Working Range | |
Column Diameter | 140 |
Max. Distance between Spindle Center to column Face | 310 |
Max. Distance between Spindle Nose to Working Table | 360 |
Max. Distance between Spindle Nose to Base Plate | 825 |
General | |
Size of Square Table | 450 x 450 |
Size of Base Plate | 555 x 775 |
'T' Slot Size Working Table / Base Plate | M-12 / M-18 |
Electric Motor | 3 Phase 1.5 H.P. 750/1500 RPM |
Net Weight of Machine ( Approx. ) | 700 Kg. |
Overall Dimensions of Machine H x W x L | 2400 x 800 x 555 |
Shipping Dimension | 2500 x 900 x 700 |
Standard Accessories:
2 Speed Electric Motor, Wiring, Drill Drift
Extra Accessories :
Machine Lamp, Coolant Pump with Fittings, Drill Chuck, Arbor, First Filling Gear Box Oil, Drill Bits, Drill Vice.
